stromer distribution board 12/48V ,22 ST2S 2018

Specs

• Voltage rating: 12 V and 48 V
• Model year: 2018
• Model: 22 ST2S
• Brand: Stromer

Features

• Dual-Voltage Management: central hub governing both the main 48 V e-bike system and the 12 V auxiliary system
• Central electrical hub: coordinates power distribution and component communication across the bike's electrical network
• Compact design: streamlined central unit designed for clean integration within e-bike systems
• Brand reliability: Stromer—a recognized name in high-performance e-bike energy management

Compatibility

• Designed for Stromer e-bike electrical architectures requiring dual-voltage power management
• Suitable for integration where a centralized distribution board coordinates power and communications across components

Physical

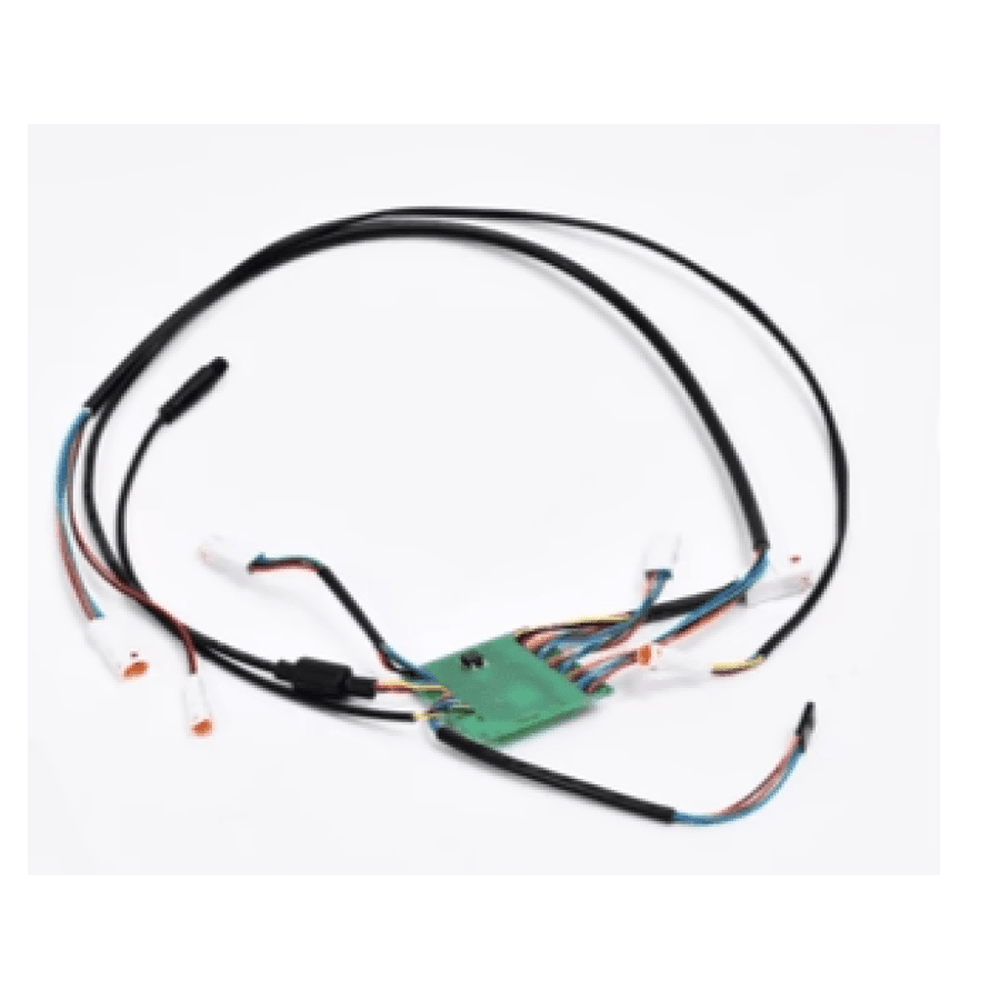

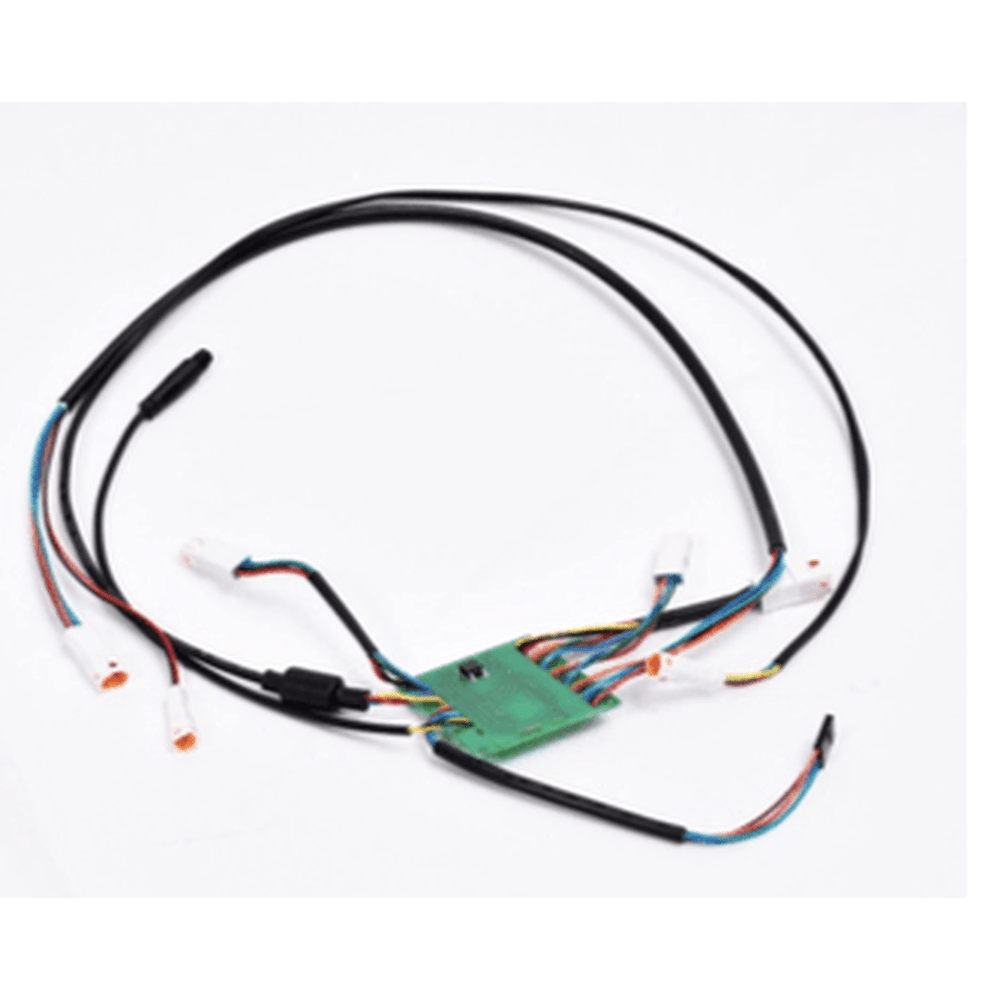

• Package appearance: green printed circuit board with multiple connector headers
• Connections: numerous color-coded wiring harnesses for power and signal lines
• Form factor: compact central hub suitable for internal mounting within an e-bike enclosure
• Wiring: dual-voltage capable harnesses for 12 V and 48 V systems
